Stinger Benchtop CNC



The Stinger is built in true CAMaster fashion. With a welded steel frame and Hiwin bearings the Stinger is leaps and bounds ahead of the market for a small platform CNC Router. Built next to its counterpart the Cobra, the Stinger has many of the same features and is based on a tried and true concept. The design of this router was based on the needs of the hobbyist and to fill a gap in the market. With many machines that are imported or built with only cost in mind, the Stinger will set the trend for small format CNC’s.

“Our goal for the Stinger is to allow the hobbyist or the small shop to be able to enjoy an affordable industrial quality router.”  The CAMaster Team

Standard Machine Specifications

  • Bed Size 635mm x 914mm
  • 127mm Z-Clearance
  • 1.4Kw Bosch Router Motor with variable speed
  • Control PC running WinCNC
  • 19” Monitor
  • T-Slot Table with four Clamps
  • Counter Balance on Z-Axis
  • Rapid Movement Speed 12.7m/min
  • Dust Boot
  • Welded Steel Table and Frame with powder coated finish
  • Levelling Feet
  • Limit Switches on all Axies
  • Hiwin Linear Bearings on all Axies
  • Total Weight 150kg

Each Stinger Series Router is supplied with industry
leading Vectric Aspire Software

For information, click here


Machining a 3D Model



Option

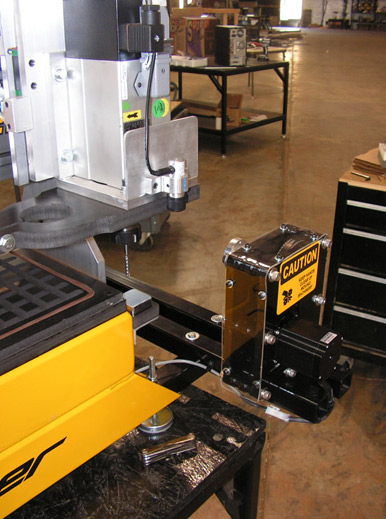

Mini Recoil Indexing lathe

The Mini Recoil like the larger version on the Cobra Series Routers is a woodworking lathe that has been fitted with a high torque step motor & driver. This motor/driver combination gives the Recoil lathe the ability to break down the segments of a cylinder in to degrees. Unlike traditional lathes that spin without stopping the Recoil can rotate stop and change directions many times in a file. This ability helps 3D software like Aspire and others to control the lathe and make wonderful 3D carved turnings.

3D Lathe Demonstration
